The Chandler Limited Little Devil EQ is a discrete, transformer balanced 500 Series module that combines Wade Goeke’s designs with recording studio favourites of the past.

The Little Devil EQ is a small package with a huge sound; it is a Chandlerized British console sound in a 500 package!

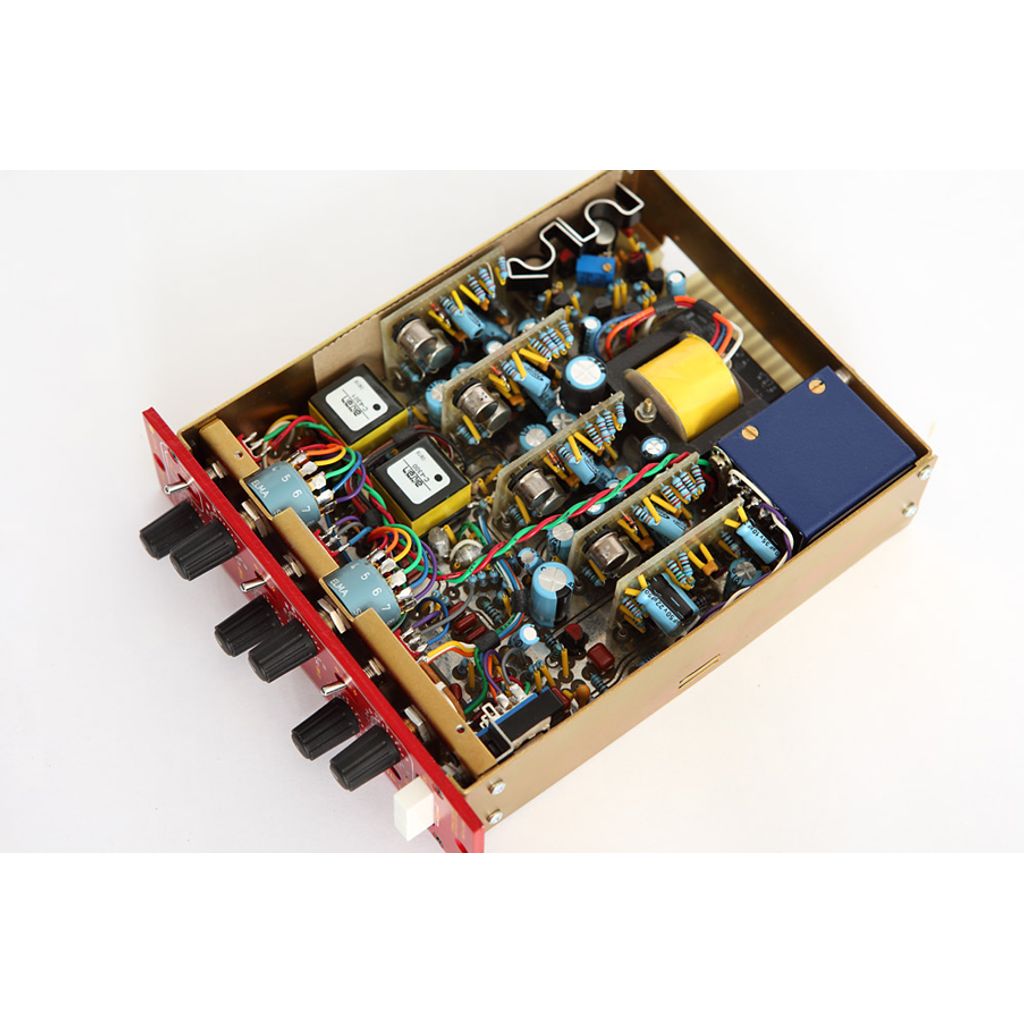

This Devil has all discrete circuits with custom transformers, an inductor-based EQ that modern gyrator circuits can’t touch, and a classic Baxendall tone control that is simply huge sounding! These units are all handmade using through-hole components and handwiring. We don’t use surface mount components which, in our opinion, lowers the quality. Chandler’s units are extremely high-quality made the way your favourite vintage units were made to preserve that special sound.

Please note that all Devils feature increased compatibility! No power issues here!

Little Devil EQs and Little Devil Compressors have been upgraded to eliminate the power conflict experienced with some 3rd party racks and lunchboxes.  The upgrade has been tested in the racks listed below.  Any Little Devil EQ or Little Devil Compressor with compatibility issues can be returned to Chandler Limited for a free upgrade (parts and labor), however, Chandler Limited will not cover shipping costs.

All Chandler 500 series units have now been tested and proven to have no power issues in the following racks:  API 500V 10-slot with L200 PSU; API 500-6B Lunchbox; API 500-6B HC “new version” Lunchbox; BAE 11-slot with power one supply; BAE 6-slot portable with power one supply; BAE 6-slot with Avedis designed supply; A-Designs 2-slot; Purple Sweet 10; and Empirical Labs 2-slot.

Circuit Type: Class A, Discrete, Silicon Transistor

Channels: Mono

Feature Set:

• Treble shelf +/-18 dB, Treble 12 kHz, switchable
• Bass shelf +/-18 dB, 50/110 Hz switchable
• Hi and Lo Mid +/-18db with HI and LO “Q” switching on each band
• Hi Mid: 8k2, 6k8, 5k6, 4k7, 3k3, 2k7, 1k2.
• Lo Mid: 820, 560 470, 390, 330, 270, 220 Hz.
• Filter: 47, 82, and 150 Hz, switchable
• Bypass: True bypass

I/O: 500 Series format (frame dependent)

Power:

• 500 Series format: +/-16V
• Max. current draw: +16V @ +90mA / -16V @ -70mA
