The use of germanium devices opens a whole new sound palate not found in any pro audio equipment currently manufactured.

These incredibly smooth sounding transistors were the basis of the earliest transistor designs by Neve (1053, 1055, 1057), EMI (TG12345 MKI), Telefunken, and Fairchild. Those familiar with these units can attest to the special sound of the germanium transistor. The GERMANIUM series runs on +40 volt power, high current, and has a huge +34 output before clipping. The sound is warm and smooth, as with many vintage style circuits, but you'll find a whole new world of smooth here, as well as a sound that settles in perfectly to your tracks without fighting. The Germanium uses Chandler's new custom wound transformers that combine the best parts of our favorite St Ives and Gardners input and output transformers.

All Germanium units require and function on the PSU-1, Chandler Limited power supply. The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V)

‍

GERMANIUM PRE AMP/DI TECHNICAL SPECIFICATIONS

CHANNELS: Mono

CIRCUIT: Discrete, Transistor

Gain: -5 to +65 db
Mic Input Impedance: 200Ω

CONNECTIONS

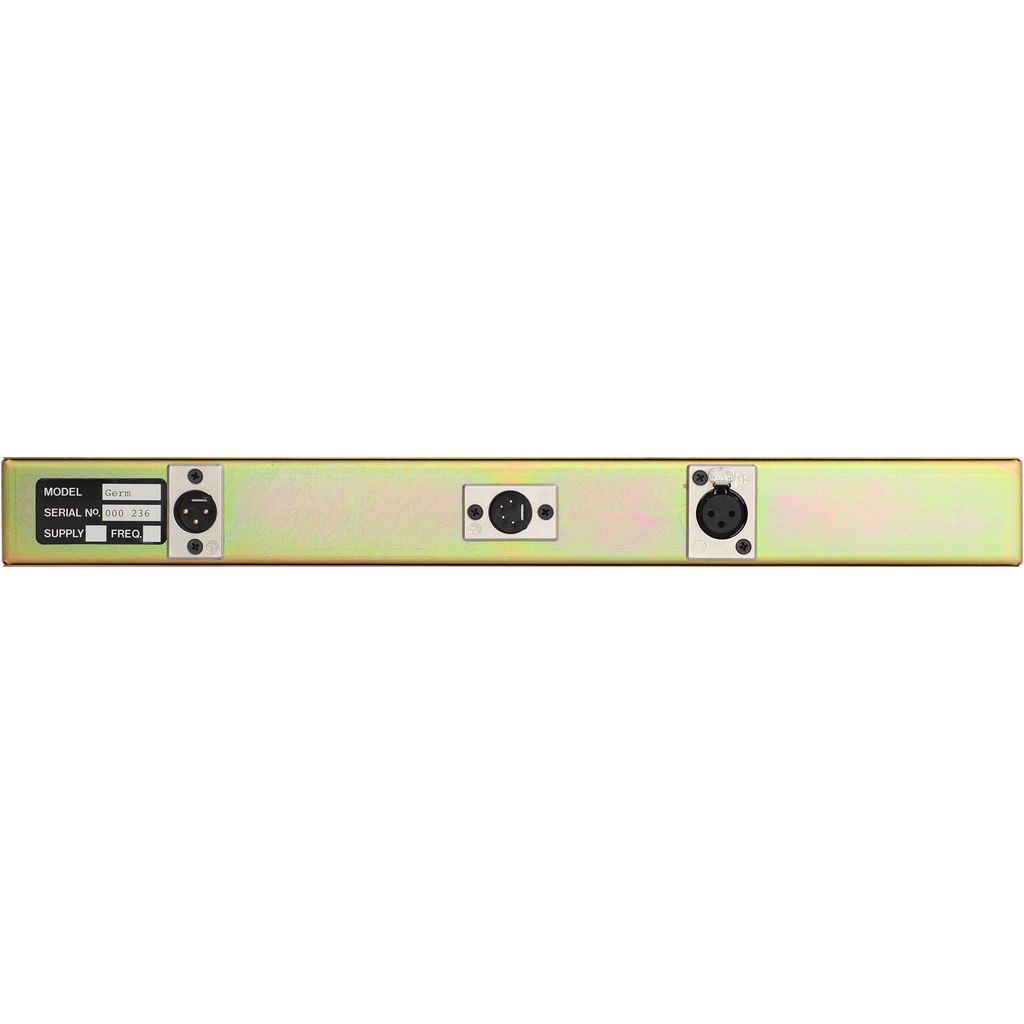

I/O: XLR, Transformer Balanced, Pin 2 Hot
DI, 1/4" Unbalanced, Input Impedance: 100k Ω

POWER
Phantom Power: +48v
Power: ±28v
Requires the Chandler Limited PSU-1 MKII power supply

‍
