500-series FET Compressor Attack: Continuously variable 20uS to 800uS Release: Continuously variable 1200mS to 50mS Sidechain HPF: OFF, 100Hz, 200Hz Ratio: Pushbutton selected 4:1, 8:1, 12:1, 20:1 or any other combination Voltage: ± 16v Dimensions: Width:76 mm (3”) Height: 178 mm (5.25”) Depth: 229 mm (9”) Weight: 1.47 kg (3.25 lbs) Manufacturer Part Number: Seventeen 500 A note on the Attack control: The Attack control on the Seventeen works a little differently than you may have encountered on other ‘76-style compressors. Turning the Attack knob to the left (counter-clockwise) will yield faster attack times; slower times result when turning to the right (clockwise). We’ve found this control scheme to be more intuitive; akin to a volume knob decreasing level to the left and increasing to the right. Attack: Continuously variable 20uS to 800uSRelease: Continuously variable 1200mS to 50mS

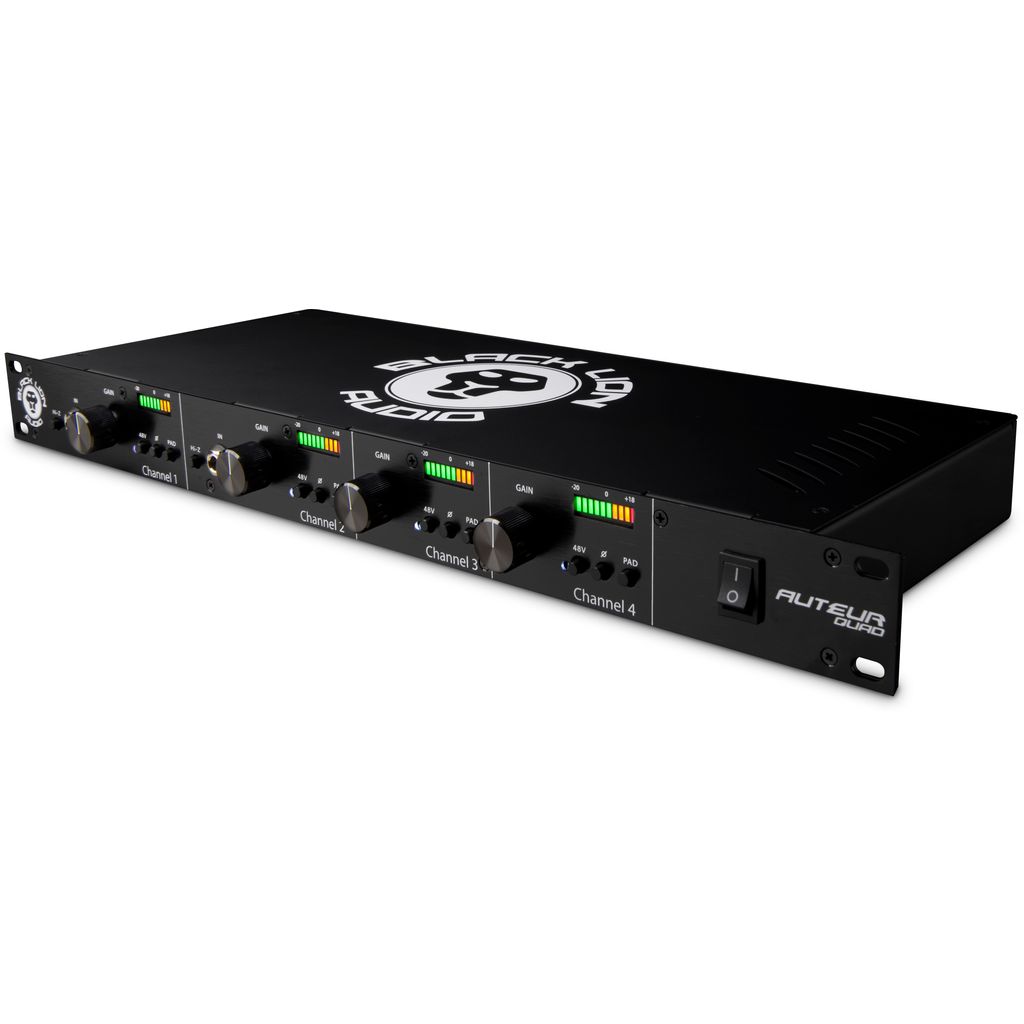

This mixture of vintage and modern design approaches has led the Auteur to be known as the “Swiss army knife of preamps” that sounds great on everything. It especially shines on sources that require detail but also benefit from some thickness such as drums or vocals. Some of the major additions to the Quad over the 2 channel half rack unit would be the all new meters on all four channels as well as borrowing the loved DI circuit from our 500 series Auteur on the first 2 channels. This feature set as well as channel count gives you one of the most affordable preamps in the world at an unbelievable price
Preamp Type: Solid State
Number of Channels: 4
Phantom Power: Yes
Pads: -10dB
Polarity Switch: Yes

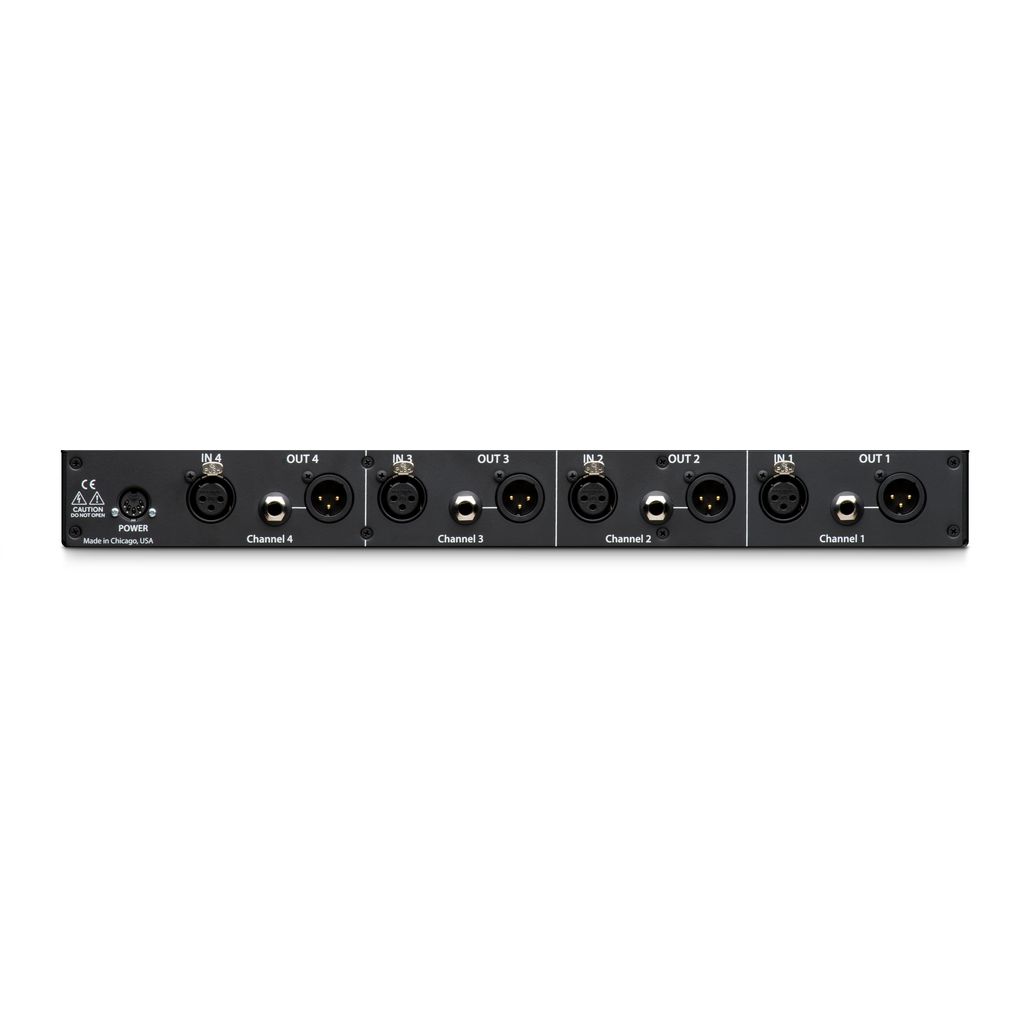

Analog Inputs: 4 x XLR (mic), 2 x 1/4″ (Hi-Z)
Analog Outputs: 4 x XLR, 4 x 1/4″
Frequency Response: 10Hz-30kHz (bandwidth)
Rack Spaces: 1U
Power Source: 4-pin DIN External power supply (included)
Height: 1.8″
Depth: 7.6″
Width: 19″
Weight: 6.1 lbs.
Manufacturer Part Number: AUTEURQUAD
